Getting Started 4 - Markets: Fixed Income Custom Assets

Example: Hydrating with U.S. Treasury Constant-Maturity Yields

To demonstrate, we’ll build a data node that hydrates the platform with interest‑rate curves you can use later in fixed‑income applications (pricing, stress analysis, and more).

First, create a data node to store constant‑maturity U.S. Treasury yields. We’ll source the data from polygon.io.

A complete DataNode implementation lives in the public data connectors repo:
https://github.com/mainsequence-sdk/data-connectors
Look under data_connectors/prices/polygon/data_nodes.py.

class PolygonUSTCMTYields(PolygonEconomyNode):
    """
    Daily U.S. Treasury constant-maturity yields by tenor from Polygon Economy API.
    Identifiers: UST_<tenor}_CMT (e.g., UST_2Y_CMT)
    Columns:
      - days_to_maturity (int)
      - par_yield (decimal)
    """

Creating or Resolving Assets in Code

In earlier examples, get_asset_list simply returned assets that already existed. Here, you’ll create the assets on the fly if they’re missing. We also attach optional properties such as security_market_sector, security_type, and security_type_2 to enable richer filtering on the platform. You can find build_assets method in the same file as above:

def build_assets(self) -> List[msc.Asset]:
    payload = []
    for tenor in UST_CMT_FIELD_BY_TENOR:
        identifier = f"UST_{tenor}_CMT"
        snapshot = {"name": identifier, "ticker": identifier, "exchange_code": "US_TREASURY"}
        payload.append({
            "unique_identifier": identifier,
            "snapshot": snapshot,
            "security_market_sector": msc.MARKETS_CONSTANTS.FIGI_MARKET_SECTOR_GOVT,
            "security_type": msc.MARKETS_CONSTANTS.FIGI_SECURITY_TYPE_DOMESTIC,
            "security_type_2": msc.MARKETS_CONSTANTS.FIGI_SECURITY_TYPE_2_GOVT,
        })
    asset_list = msc.Asset.batch_get_or_register_custom_assets(payload)
    return asset_list

def get_asset_list(self) -> List[msc.Asset]:
    return self.build_assets()

As in the previous tutorial, you can copy code files and snippets from data connectors repository into your tutorial project and adjust the imports making sure they point to the correct locations to ensure that PolygonUSTCMTYields works correctly and create a run endpoint to update the data for the first time.

But if you not sure how to do it, you can go with simple approach described below. 1. Open you PowerShell or terminal and navigate to some temporary folder outside of your tutorial project. 2. Clone the data-connectors repository there:

git clone https://github.com/mainsequence-sdk/data-connectors.git

3. Use your file explorer to open the cloned data-connectors folder. 4. Copy the whole data_connectors/ you can find inside the cloned folder to the src/ folder of your tutorial project. 5. Now you can delete the cloned before data-connectors folder as you already copied necessary code to your tutorial project. 6. Now you are ready to run the PolygonUSTCMTYields data node in your tutorial project.

So after you copied code from data-connectors repository for the PolygonUSTCMTYields class you need to create a new runner file in scripts folder with a name run_ust_cmt_yields.py and add this code to it:

from src.data_connectors.prices.polygon.data_nodes import PolygonUSTCMTYields
from mainsequence.client import Constant as _C

data_node = PolygonUSTCMTYields()
data_node.run(debug_mode=True, force_update=True)

Now you need is to get your API key from polygon.io and add it as environment variable POLYGON_API_KEY in the .env file in the root of your project.

Register and request your API key here https://polygon.io/

POLYGON_API_KEY="your_polygon_api_key_here"

After that you can add a new entry to your .vscode\launch.json file in configurations list:

(Windows):

{
    "name": "Debug ust_cmt_yields",
    "type": "debugpy",
    "request": "launch",
    "program": "${workspaceFolder}\\scripts\\run_ust_cmt_yields.py",
    "console": "integratedTerminal",
    "env": {
        "PYTHONPATH": "${workspaceFolder}"
    },
    "python": "${workspaceFolder}\\.venv\\Scripts\\python.exe"
}

(macOS/Linux):

{
    "name": "Debug ust_cmt_yields",
    "type": "debugpy",
    "request": "launch",
    "program": "${workspaceFolder}/scripts/run_ust_cmt_yields.py",
    "console": "integratedTerminal",
    "env": {
        "PYTHONPATH": "${workspaceFolder}"
    },
    "python": "${workspaceFolder}/.venv/bin/python"
}

Then back to run_ust_cmt_yields.py file and run it from the Run and Debug dropdown at the top right (near the play button), same way as you done it in previous parts of the tutorial.

After running the node, you should see the table in the platform: https://main-sequence.app/dynamic-table-metadatas/?search=polygonustcmtyields_&storage_hash=&identifier=

Note: it also possible to simply fork whole data-connectors project on MainSequence platform and handle it as a separate project completely independent from your tutorial project, but we recommend to stick to instructions above to keep your tutorial project clean and simple and available to reference later. So next instructions are just for your information if you want to try it out. To fork the repo into new project: 1. Go to https://main-sequence.app/projects/ 2. Find project with "data_connectors" name and click on it 3. In the top right corner you see three dots menu, open it and click on "Fork Project" button, assing it name like "my_data_connectors" and click on "Fork". 4. Than you can set up new project locally as you done before in previous parts of tutorial and work with this new project afterwards e. g. add run_ust_cmt_yields.py file and new entry in .vscode/launch.json to run it. 5. Don't forget to add your polygon API key as environment variable POLYGON_API_KEY in the .env file in the root of your new project, then follow this tutorial.

From CMT Yields to a Zero Curve

Next, build a zero curve and store it in a zero_curves data node. The idea is to provide a backend data node from which you can retrieve different curves and use them to value fixed‑income instruments (e.g., custom swaps or floating‑rate coupon bonds).

We provide a curve registry factory that can serve as a blueprint for your projects. You can keep ours or implement your own; to move quickly, we recommend using ours initially.

The zero‑curve DataNode can be found at data_connectors/interest_rates/nodes.py:

class DiscountCurves(DataNode):
    ...

    def update(self):
        # Download CSV from source
        df = DISCOUNT_CURVE_BUILD_REGISTRY[self.curve_config.unique_identifier](
            update_statistics=self.update_statistics,
            curve_unique_identifier=self.curve_config.unique_identifier,
            base_node_curve_points=self.base_node_curve_points,
        )

        # Apply the new compression and encoding function to the 'curve' column.
        df["curve"] = df["curve"].apply(compress_curve_to_string)

        last_update = self.update_statistics.get_last_update_index_2d(self.curve_config.unique_identifier)
        df = df[df.index.get_level_values("time_index") > last_update]

        if df.empty:
            return pd.DataFrame()

        return df

The method above is generic. What you need is a registry entry that points a curve identifier to a build function.

Because we previously copied the data_connectors folder into your tutorial project, you already have the curve registry implemented, but it still need to be adjusted.

Make sure that data_connectors/interest_rates/registries/discount_curves.py exists and looks exactly like this, and adjust code if necessary:

from __future__ import annotations

from typing import Callable, Dict, Mapping

# Provider builders / constants
from mainsequence.client import Constant as _C

# UST CMT (Polygon) — keep source-specific UID in its own settings module
from data_connectors.prices.polygon.builders import bootstrap_cmt_curve

def _merge_unique(*maps: Mapping[str, Callable]) -> Dict[str, Callable]:
    out: Dict[str, Callable] = {}
    for m in maps:
        for k, v in m.items():
            if k in out and out[k] is not v:
                raise ValueError(f"Duplicate registry key with different builder: {k}")
            out[k] = v
    return out

# Base maps per source (explicit so adding/removing sources is easy)

"""
signtaure for each zero curfe function should be like the one bellow
def bootstrap_cmt_curve(update_statistics, curve_unique_identifier: str, base_node_curve_points:APIDataNode):
and should
 Returns one dataframe with:
         - MultiIndex ("time_index", "unique_identifier")
         - Column "curve": dict[days_to_maturity] → zero_rate (percent)

where unique_identifier is the name of this zero_curve, we recommend that you
build a constant in the backend to retrieve this specific curve
"""
_POLYGON_CURVES = {
    _C.get_value(name="ZERO_CURVE__UST_CMT_ZERO_CURVE_UID"): bootstrap_cmt_curve,
}

# ---- Public, aggregated registry ----
DISCOUNT_CURVE_BUILD_REGISTRY: Dict[str, Callable] = _merge_unique(
    _POLYGON_CURVES
)

Constants:

Notice the import of mainsequence.client.Constant. As you build multiple applications across data nodes and projects, it’s useful to fetch constants via the API. Main Sequence supports both global constants (available across the platform) and project‑scoped constants (limited to a project).

To keep things orderly without adding complexity, constants can be grouped by category using a double underscore __ as a separator. The name of the constant doesn’t change, but the platform groups related constants for easier filtering and visualization.

Where are these constants created? To ensure a curve constant exists, we run a get‑or‑create operation when importing the prices/polygon/__init__.py module:

constants_to_create = dict(
    POLYGON__UST_CMT_YIELDS_TABLE_UID=UST_CMT_YIELDS_TABLE_UID,
    ZERO_CURVE__UST_CMT_ZERO_CURVE_UID="polygon_ust_cmt_zero_curve_usd",
)

_C.create_constants_if_not_exist(constants_to_create)

Interest rate fixing DataNode

So far, we’ve used the zero_curve registry helper from data_connectors to model future cash flows. However, with most pricing libraries — including QuantLib — we also need past fixing dates to price cash flows whose fixings occurred in the past.

Below, let’s look at data_connectors/prices/fred/data_nodes.py. Here we have a data node designed to integrate economic data from the Federal Reserve Bank of St. Louis (FRED) - FixingRatesNode.

Create a new runner file in scripts folder with a name run_fred_fixings.py and add this code to it:

from src.data_connectors.prices.fred.data_nodes import FixingRatesNode, FixingRateConfig, RateConfig
from mainsequence.client import Constant as _C

USD_SOFR = _C.get_value(name="REFERENCE_RATE__USD_SOFR")
USD_EFFR = _C.get_value(name="REFERENCE_RATE__USD_EFFR")
USD_OBFR = _C.get_value(name="REFERENCE_RATE__USD_OBFR")
fixing_config = FixingRateConfig(rates_config_list=[
RateConfig(unique_identifier=USD_SOFR,
            name=f"Secured Overnight Financing Rate "),
RateConfig(unique_identifier=USD_EFFR,
            name=f"Effective Federal Funds Rate "),
RateConfig(unique_identifier=USD_OBFR,
            name=f"Overnight Bank Funding Rate"),
    ])
ts = FixingRatesNode(rates_config=fixing_config)
ts.run(debug_mode=True, force_update=True)

Now you can add a new entry to your .vscode\launch.json file in configurations list:

(Windows):

{
    "name": "Debug fred_fixings",
    "type": "debugpy",
    "request": "launch",
    "program": "${workspaceFolder}\\scripts\\run_fred_fixings.py",
    "console": "integratedTerminal",
    "env": {
        "PYTHONPATH": "${workspaceFolder}"
    },
    "python": "${workspaceFolder}\\.venv\\Scripts\\python.exe"
}

(macOS/Linux):

{
    "name": "Debug fred_fixings",
    "type": "debugpy",
    "request": "launch",
    "program": "${workspaceFolder}/scripts/run_fred_fixings.py",
    "console": "integratedTerminal",
    "env": {
        "PYTHONPATH": "${workspaceFolder}"
    },
    "python": "${workspaceFolder}/.venv/bin/python"
}

Before you be able to run this you need to get an API key from FRED and add it as environment variable FRED_API_KEY in the .env file in the root of your project.

FRED_API_KEY="your_fred_api_key_here"

Register and request your API key here:

https://fredaccount.stlouisfed.org/apikeys

Then back to run_fred_fixings.py file and run it from the Run and Debug dropdown at the top right (near the play button) and use Debug fred_fixings configuration.

One‑Shot Runner

Here’s how everything looks if you want to run it all at once in single script:

from data_connectors.prices.polygon.data_nodes import PolygonUSTCMTYields

data_node = PolygonUSTCMTYields()
data_node.run(debug_mode=True, force_update=True)

from data_connectors.prices.polygon.settings import UST_CMT_YIELDS_TABLE_UID
from data_connectors.interest_rates.nodes import (DiscountCurves, CurveConfig,)
config = CurveConfig(
    unique_identifier=_C.get_value("ZERO_CURVE__UST_CMT_ZERO_CURVE_UID"),
    name="Discount Curve UST Bootstrapped",
    curve_points_dependecy_data_node_uid=UST_CMT_YIELDS_TABLE_UID,
)
node = DiscountCurves(curve_config=config)
node.run(debug_mode=True, force_update=True)

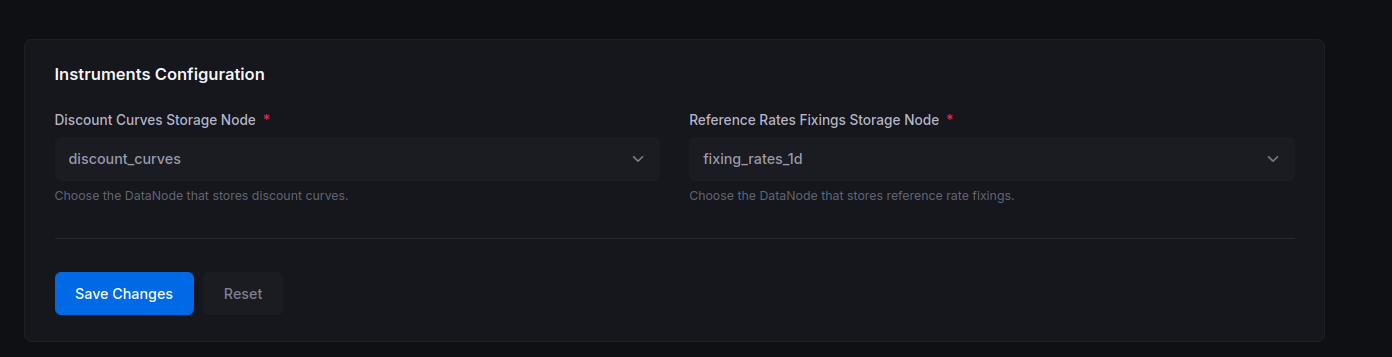

Instruments Configuration

Before moving on to the next part of the tutorial, let’s look back at the two DataNodes referenced in the data_connectors.interest_rates.get_table_metadata methods. As with any other DataNode, we assign identifiers to these two tables. This matters because we’ll use them in our instrument settings when pricing fixed-income instruments.

To prepare for the next section:

Open https://main-sequence.app/instruments/config/.
Make sure the configurations for Discount Curves Storage Node and Reference Rates Fixings Storage Node are set.

class DiscountCurves(DataNode):

    def get_table_metadata(self) -> msc.TableMetaData:
        return msc.TableMetaData(
            identifier=DISCOUNT_CURVES_TABLE_NAME,
            data_frequency_id=msc.DataFrequency.one_d,
            description="Collection of Discount Curves"
        )

class FixingRatesNode(DataNode):
    def get_table_metadata(self) -> msc.TableMetaData:
        return msc.TableMetaData(
            identifier=FIXING_RATES_1D_TABLE_NAME,
            data_frequency_id=msc.DataFrequency.one_d,
            description=f"Daily fixing rates ",
        )
